If you are not going to switch programs, this goes into yours. A palette with five tabs that do the repetitive work of a survey drawing: vertices, tables, the property description, lots and altimetry.
Spanish only, for now. This plugin's interface is currently available in Spanish only.
Tap any screenshot to look closer.
Vertices, tables and the perimeter area.

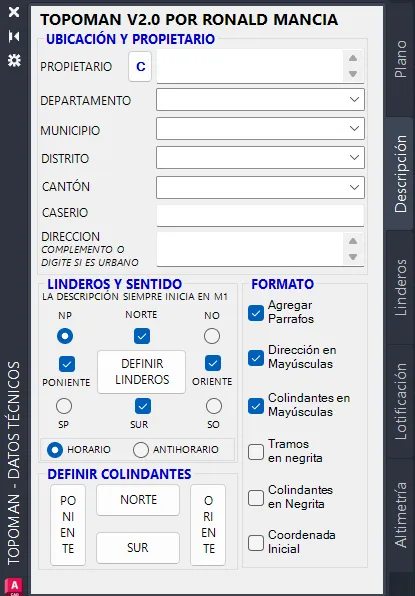

Where the property is and who owns it, with the country catalogue already inside.

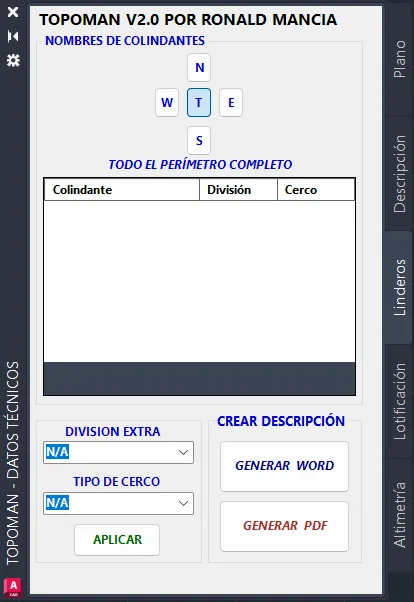

Reviews the adjoining owners and assigns fence types and divisions.

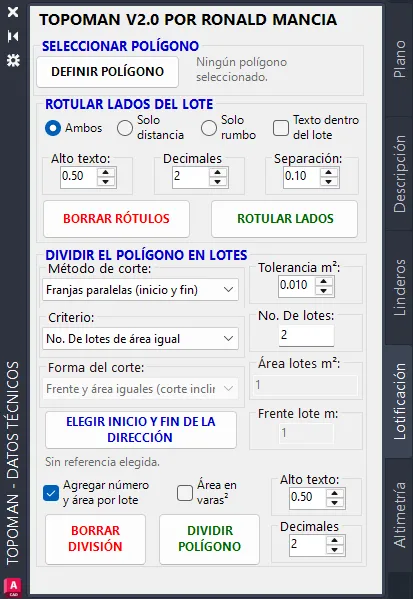

Splits a polygon into lots and labels them.

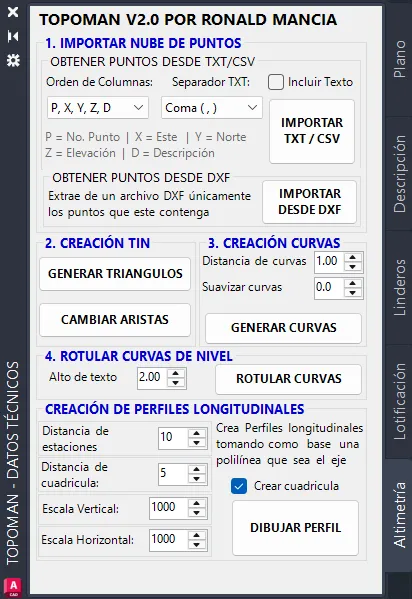

From the point cloud to contour lines and the profile.
The Location tab carries the country territorial catalogue inside, so where the property sits is picked from lists instead of typed. Until now only El Salvador was there: now you pick the country, and Guatemala is complete. Which country the palette starts on is set in Settings.
The 14 departments with their municipalities, districts and cantons, under the names of the official catalogue.
The 22 departments and the 340 municipalities from the INE, with more than four thousand aldeas. Where El Salvador has the district, Guatemala has the aldea, and the paragraph is written with that word.
The "Ajustes" button on any tab opens this window, and it opens on the tab you pressed it from. What you set here is what the tab starts with next time, so whatever you always changed by hand you change once.
At the top, outside the tabs, you choose what the palette does when AutoCAD opens: docked on the right (the factory setting), docked on the left, floating, or not opening at all and waiting for you to type TopoMan.
They go with your Windows account and not with the drawing file, so they apply to every plan of yours, and a new version of the plugin does not take them away. Each tab also has its own "Restablecer de fábrica" (reset to factory), which only resets that one.
With AutoCAD 2013 and later, 32- or 64-bit, and from a single installer: it carries both builds of the add-in inside and AutoCAD picks the one it needs. There is no edition to choose when downloading any more.
Picks the .NET 8 build, which is the platform those releases use.
Picks the backwards-compatible one, on .NET Framework 4.5, 32- or 64-bit.
The installer places the add-in where AutoCAD looks for its own, so AutoCAD loads it at start-up and the palette comes up on its own, docked on the right. No NETLOAD, and no reloading it every session, which is what version 2.0 asked for. And if you would rather it did not open by itself, or opened on the left or floating, that is a setting.
The installer removes it for you: it finds the old install, deletes its folder and its "Add or remove programs" entry, and leaves only the new one, so two copies never load at once. The one thing it cannot know about is whether you loaded it yourself from an acaddoc.lsp or from the APPLOAD Startup Suite: that line has to go by hand.
Try it first: the trial is the whole program and it never expires. And if something does not add up, write to me.
